Overview
Heavy-duty 1300×1000mm precision ball screw driven CO2 laser cutting system engineered for thick acrylic, composite wood, and high-gloss die-board cutting.
Key Advantages
This equipment incorporates advanced industrial-grade optics and heavy-duty mechanical engineering, offering the following key advantages:
High-Precision Dual Ball Screw Drive: Japanese precision ground ball screws eliminate belt stretching and deliver consistent micron-level motion
Heavy-Duty Annealed Machine Bed: Stress-relieved steel gantry and bed structure resistant to thermal deformation under continuous 24/7 operation
High-Gloss Acrylic Cutting Finish: Smooth 90-degree polished edges straight off the machine without secondary flaming or buffing
High-Power Industrial CO2 Laser: Supports 150W to 300W RF or sealed glass CO2 laser tubes for materials up to 25mm thickness
[Factory Live] SG-1310 High Power Ball Screw Precision CO₂ Laser Cutting Machine Industrial Laser System
Sample Gallery
High-precision test samples processed by this machine:
Cast Acrylic Sheet Precision Edge Cutting
Mirror-polished 90-degree edge finish straight off the machine without secondary flame polishing.

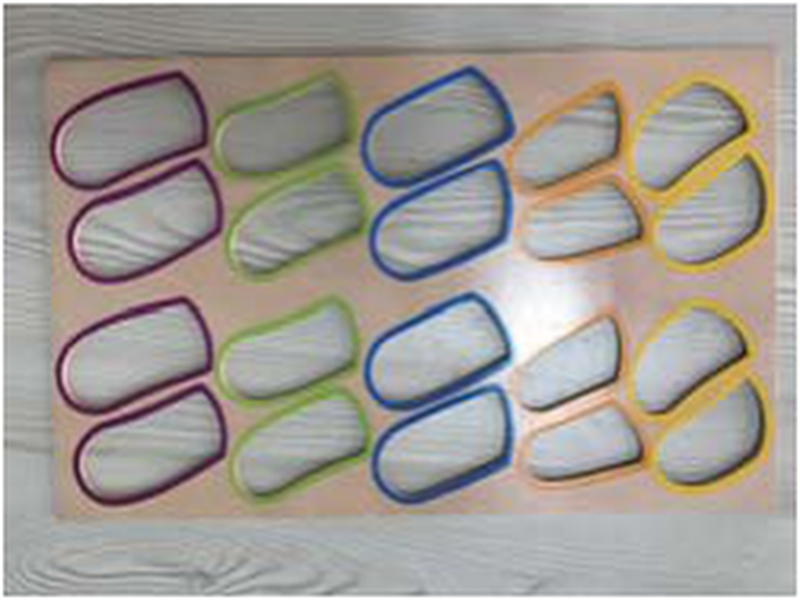

Hardwood & Architectural Plywood Complex Contouring
Ultra-narrow kerf width, sharp corner definition, and minimal thermal discoloration.
Flexible Garment Fabric & Leather Automated Nesting
Clean sealed edges without fraying, high repeat accuracy across multi-layer stacks.

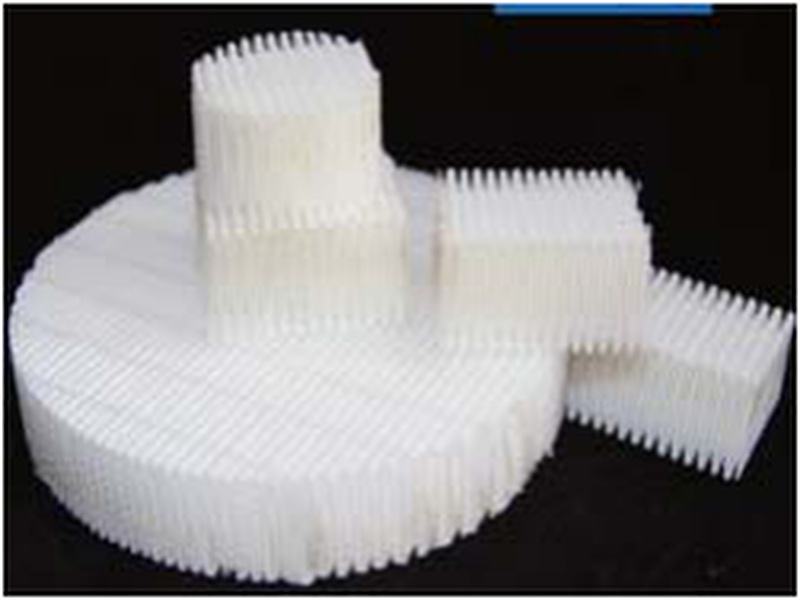

Composite Die-Board & Gasket Precision Cutting
Perpendicular vertical kerf channels ensuring tight friction-fit tooling.
Technical Specifications
* Note: Parameters listed are standard factory configurations. Custom engineering and automated production line integrations are available upon request.
Applicable Materials & Industries
❖ Applicable Materials
Acrylic (PMMA) up to 25mm MDF, Plywood & Solid Wood Die-boards & Composite Panels POM, Delrin & Engineering Plastics Silicone & Dense Rubber
❖ Target Industries
Illuminated Signage & Display Die-Making & Packaging Tooling Architectural Models & Art Crafts Acoustic Panels & Woodworking Plastic Sheet Fabrication
